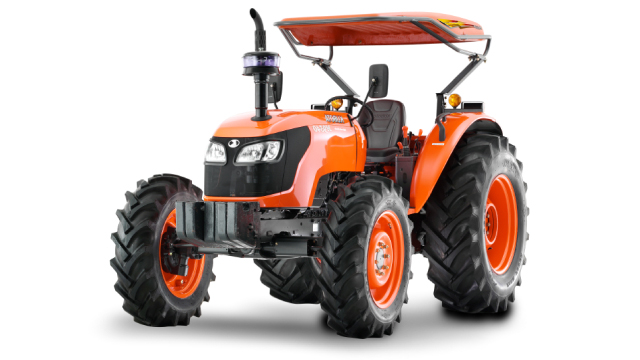

MU5501NEW

4WD MULTI UTILITY TRACTOR WITH BRAND NEW EXPERIENCE

Equipped with Japanese-technology e-CDIS engine and superb transmission, MU5501 will ensure incredible traction power at very best economical fuel mileage, leading to high productivity. Also, comfortable and ergonomic design will free operators from fatigue even after long working hours.

HORSE POWER: 55HP

ENGINE DISPLACEMENT: 2,434cc

WEIGHT: 2,250KG

Experience the wonder of Kubota with product demonstration! Please contact your local dealer.

SPECIFICATION

MODEL		MU5501(4WD)
MODEL		55HP
ENGINE	Type	Kubota V2403-M-DI, Inline FIP E-CDIS, 4 Cylinder, Liquid cooled
	Engine gross power (HP)	55HP
	Engine net power (HP)	52.8HP
	Displacement (cc)	2,434
	Air filter	Dry type, Dual element
TRANSMISSION	Clutch	Double clutch
	Gear box	8 Forward + 4 Reverse main transmission synchromesh
	Speeds - kmph	Forward Min 3 - Max 31 kmph \| Reverse Min 4.5 – Max 12.7kmph
BRAKES	Type	Oil immersed disc brakes
FRONT AXLE	Type	Fixed tread (4WD) *Bevel-Gear system (Benefit for water-proof)
HYDRAULICS	Lifting capacity - KJgh	1,550 kgh and 1,800 kgh (at lift point)
STEERING	Type	Power (Hydraulic double acting)
POWER TAKE OFF	Type	Independent, Dual PTO
PTO RPM		STD : 540 @2,258 ERPM
PTO RPM		STD : 540 @2,196 ERPM
WHEELS & TYRES	Front	9.5 x 24
WHEELS & TYRES	Rear	16.9 x 28
ELECTRICAL SYSTEM	Battery	12 Volt
	Alternator	40 Amp
	Starter motor	12 Volt, 2.2 kW
DIMENSIONS & WEIGHT	Total weight - kg	2,250 (without counter weight)
	Wheel base	2,050
	Overall length (without 3P) mm	3,250
	Overall width - mm	1,850
	Ground clearance - mm	415
	Turning radius with brakes - m	3.0
OTHERS	Deck design	Full flat
OTHERS	Fuel tank capacity (L)	65
FACTORY FITTED OPTIONS		Front tire: 6.5 x 20
FACTORY FITTED OPTIONS		Auxiliary control valve
