KX91-3NEW
KUBOTA’S FORMIDABLE KX SERIES
Kubota’s premium KX080-3S excavator features a 70HP DI engine and 3 pump load-sensing hydraulic system that powers through the harshest conditions. Work in the comfort of a luxury cab and feel peace of mind with clever features that ensure operator safety, increase productivity and keep operator costs to a minimum.
- RATED OUTPUT (SAE J1995 GROSS)
- 22.1KW (29.6 HP) / 2,250 RPM
- MACHINE WEIGHT
- 3,150KG
Experience the wonder of Kubota with product demonstration! Please contact your local dealer.
SPECIFICATION
| MODEL | KX91-3 | |
|---|---|---|
| BUCKET CAPACITY(M3) | 0.10 |
|
| STD.BUCKET WIDTH: (WITH/WITHOUT CUTTING BLADE)(MM) | 470 | |
| MACHINE WEIGHT (KG) | 3,150 | |
| OPERATING WEIGHT (INCLUDING OPERATOR WEIGHT: 75KG) (KG) | 3,225 | |
| DIMENSIONS (IN TRANSPORT CONDITION) |
Overall length(mm) | 4,795 |
| Overall height(mm) | 2,440 | |
| Overall width(mm) | 1,550 | |
| Min. ground clearance(mm) | 295 | |
| ENGINE | Model | Kubota D1703-M-BH-TH1 |
| Total displacement(cc) | 1,647 | |
| Rated output (SAE J1995 gross)(kW (HP) / rpm) | 22.1(29.6)/2,250 |
|
| WORKING RANGE | Max. digging height(mm) | 4,935 |
| Max. dumping height(mm) | 3,530 |
|
| Max. digging depth(mm) | 3,180 | |
| Max. vertical wall digging depth(mm) | 2,540 |
|
| Max. digging radius(mm) | 5,245 |
|
| Boom swing (left/right)(deg) | 80/50 |
|
| Min. turning radius(mm) | 1,900 |
|
| Min. tail turning radius(mm) | 1,310 | |
| Max. breakout force (bucket)(kN (kgf)) | 35.8(3,655) |
|
| TRACK TYPE | Steel | |
| TRACK WIDTH(MM) | 300 | |
| TRAVEL SECTION | Crawler length(mm) | 2,000 |
| Tumbler distance(mm) | 1,560 | |
| Travel speed (1st/2nd gear)(km / h) | 3.1/4.8 |
|
| Max. climbing angle(deg) | 20 | |
| SWING SPEED(RPM) | 9 | |
| BLADE | Width(mm) | 1,550 |
| Height(mm) | 335 | |
| Max. lift above ground/drop below ground(mm) | 370/370 |
|
| HYDRAULIC PUMP TYPE | Variable pump x 2 + gear pump x 1 |
|
| SWIVEL MOTOR TYPE | Hydraulic piston motor | |
| TRAVEL MOTOR TYPE | Hydraulic piston motor: 2F |
|
| FUEL TANK CAPACITY(L) | 50 | |
- Specifications in this catalog are subject to change without prior notice.

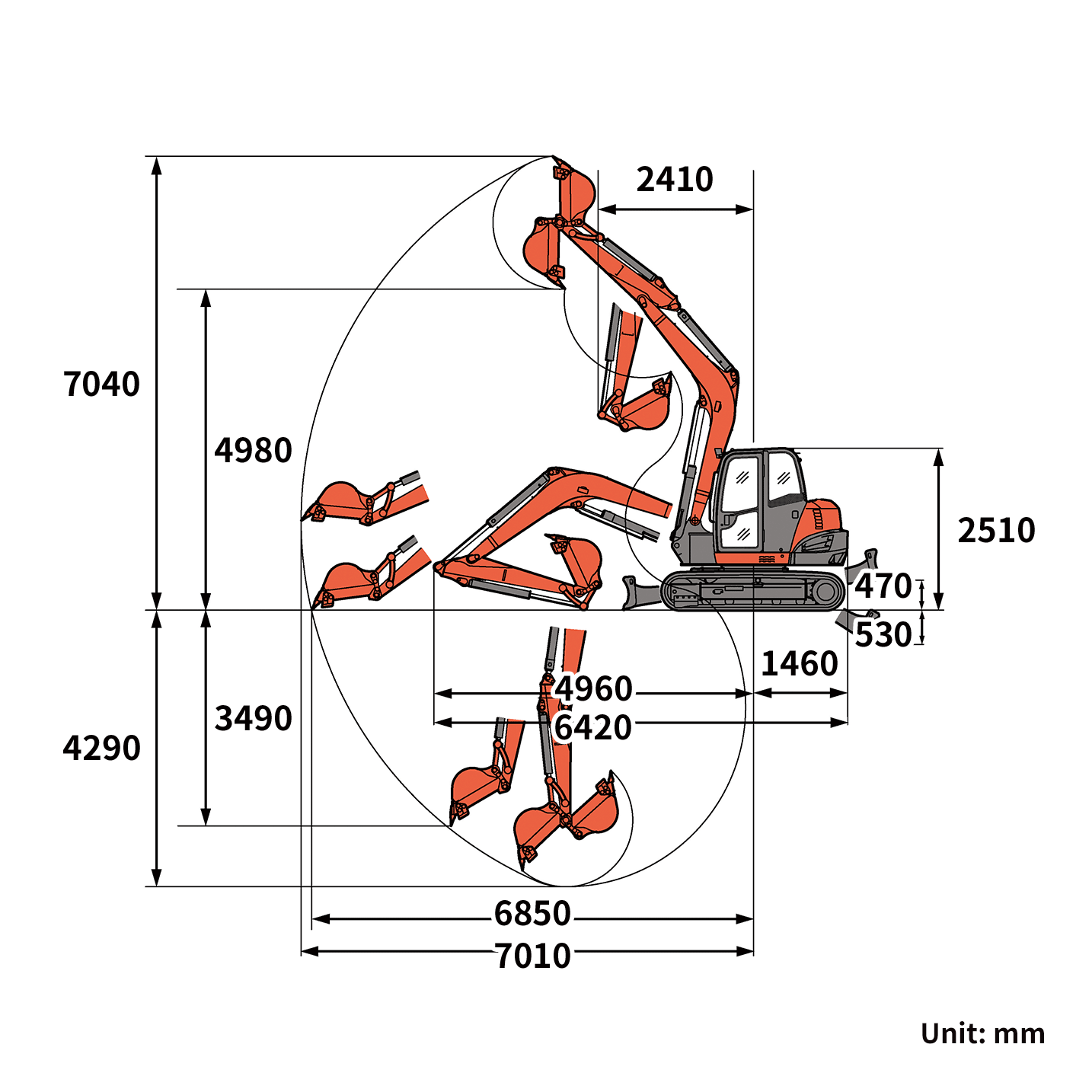

WORKING RANGE(UNIT:MM)
ATTACHMENTS
APPLICATIONS
Kubota mini excavator is widely used in various construction and agriculture fields such as road municipal work, pipe network, gardening and water conservancy combination with multiple attachments. You may carry out operation at ease under various condition and environment. The real world-class Kubota mini excavator is ready to take any challenge !
-
AGRICULTURE
-
LANDSCAPING
-
BUILDING CONSTRUCTION
